home>Mate Series>N-Type Double Glass Bifacial Solar Module with Silver Film Mesh
15-year product warranty
30-year linear power output
Mate Series

N-Type Double Glass Bifacial Solar Module with Silver Film Mesh
610~635 WattTOPCon


Bifacialty

Capable of generating power at back side,at least

80% efficiency of the front side

PRODUCT INQUIRY Datasheet

IEC61215,IEC61730
ISO 9001:2015(Quality management systems)
ISO 14001:2015(Environmental management systems)
ISO45001:2018(Occupational health and safety)
UNI 9177 la CLASSE DI REAZIONE AL FUOCO:1

Product Description

  • Cutting Free Technology

    Minimized micro-crack

  • Bifacialty

    Capable of generating power at back side,at least

    80%efficiency of the front side

  • Anti-PID(potential induced degradation)

    Passed anti-PID test under 85℃ damp heat

    85%relative humidity for 192 hours

  • Lower LCOE

    Lower shading and resistive loss

    Lower temperature coefficient

  • Outstanding mechanical load Resistance

    2400 Pa wind load,5400 Pa snow load

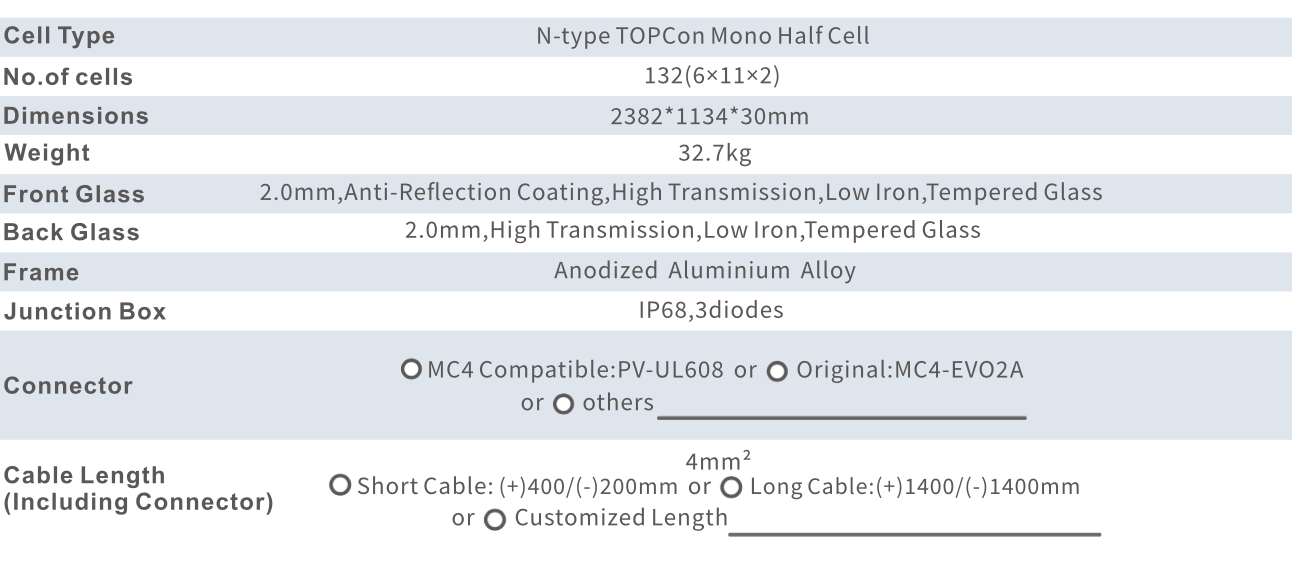

Specifications

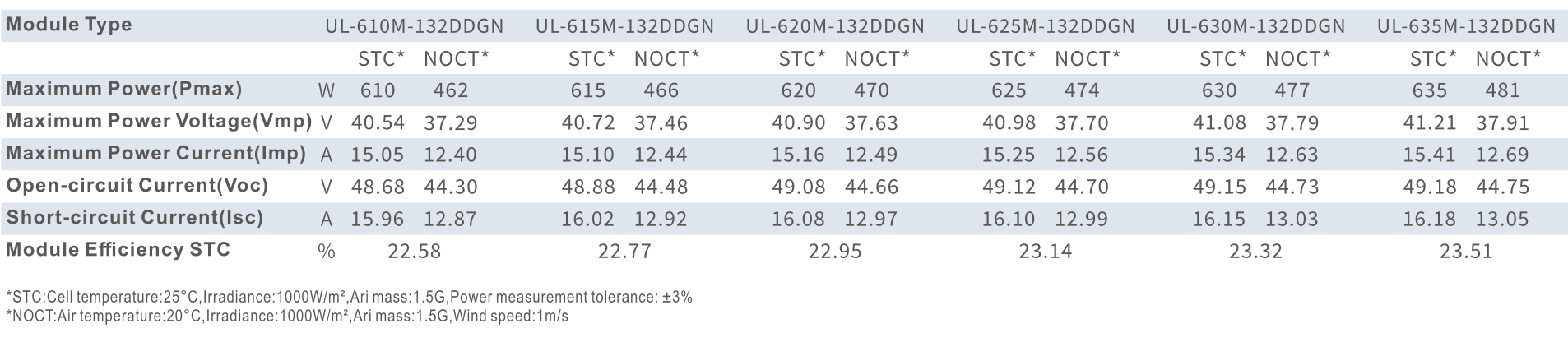

Electrical Specifications

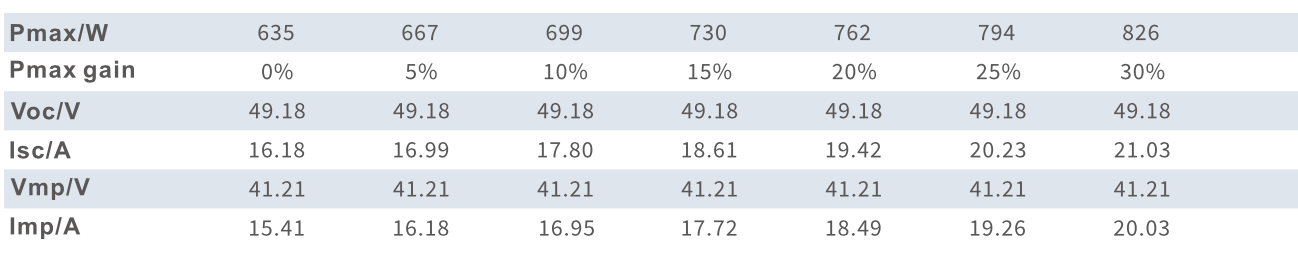

Electrical characteristics with different rear side power gain(reference to 635W front)
